DC24V To AC220V 300W Pure Sine Wave Inverter

Products » Pure Sine Wave Inverter » 24V Inverter

Name :

DC24V To AC220V 300W Pure Sine Wave Inverter

Color:

Silver White

Size:

240 x 105 x 73mm

Material:

Aluminum alloy shell

[ Close ]

Description:

Specification

Model		SKH-300W-PSW12V	SKH-300W-PSW24V
Rated Power		300W
Continuous Power		300W
Peak Power		600W
Input Section	DC Input Voltage	12V	24V
	DC Operating Voltage	10-15V	20-30V
	DC Low Voltage Protection	9.3±0.5V	18.6±0.5V
	DC Over Voltage Protection	15.5±0.5V	31±0.5V
Output Section	Output Waveform	Pure Sine Wave
	Output Voltage	220V-240V
	Output Frequency	50Hz±1%
Quiescent Current		≤0.45A	≤0.25A
Fuse		20A*2	15A*2
Transfer Efficiency		≥93%
Buzzer Sound Alarm		Yes
Over Load Protection		Yes
Short Circuit Protection		Yes
Reverse Connect Protection		Yes (Blown Fuse)
USB Output Voltage		DC 5V (USB 2.1A outlet)
Cooling Type		By Smart Cooling Fan
Operating Temperature		0℃-40℃
Temperature Protection		≥70℃
Green LED Indicator		Green Light (Working)
Red LED Indicator		Red Light (Error Protection)
Size		240 x 105 x 73mm
Weight		1.2Kg

Features

1. MCU intelligent control, high-end MOSFET, better performance and better protection.
2. Over voltage, low voltage, over temperature, over load, short circuit, reverse connect protection.

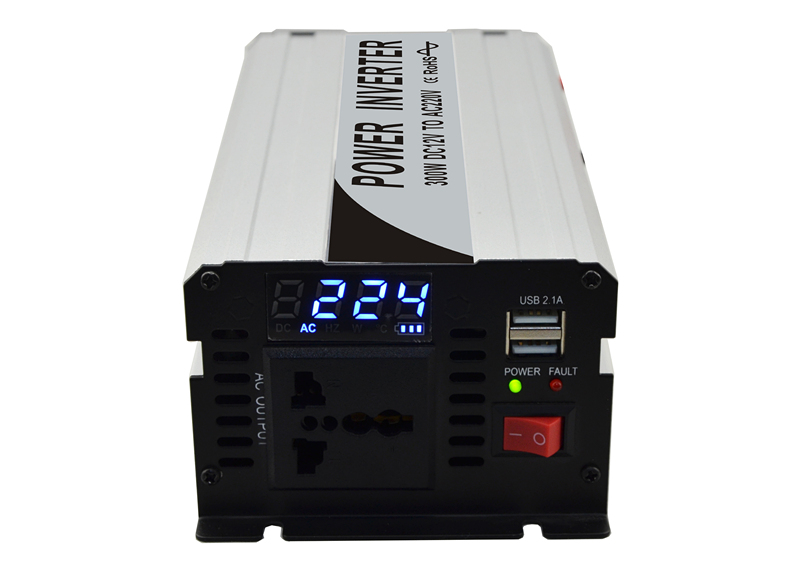

3. With intelligent LCD display, shows the working status of the inverter at all times.
4. With temperature controlled cooling fan.
5. With the USB 2.1A outlet.
6. Soft start function, increase loading capacity.
7. High working efficiency, low temperature at full load.
8. Aluminum alloy shell, heat eliminable.

Application

Can be widely used for solar energy system, wind energy system, fridge, refrigerator, air-condition, water pump, motor, car, LED light, camera, fan, hair dryer, electric light, electric kettle, TV set, CD player, mobile phone, laptop, portable device, etc.
