DC24V To AC220V 1500W Pure Sine Wave Inverter

Products » Pure Sine Wave Inverter » 24V Inverter

  • Name :

    DC24V To AC220V 1500W Pure Sine Wave Inverter

  • Color:

    Silver White

  • Size:

    332 x 160 x 88mm

  • Material:

    Aluminum alloy shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SKH-1500W-PSW12V

    SKH-1500W-PSW24V

    Rated Power

    1500W

    Continuous Power

    1500W

    Peak Power

    3000W

       Input  Section

    DC Input Voltage

    12V

    24V

    DC Operating Voltage

    10-15V

    20-30V

    DC Low Voltage Protection

    9.3±0.5V

    18.6±0.5V

    DC Over Voltage Protection

    15.5±0.5V

    31±0.5V

    Output Section

    Output Waveform

    Pure Sine Wave

    Output Voltage

    220V-240V

    Output Frequency

    50Hz±1%

    Quiescent Current

    ≤0.45A

    ≤0.25A

    Fuse

    30A*6

    20A*6

    Transfer Efficiency

    ≥93%

    Buzzer Sound Alarm

    Yes

    Over Load Protection

    Yes

    Short Circuit Protection

    Yes

    Reverse Connect Protection

    Yes (Blown Fuse)

    USB Output Voltage

    DC 5V (USB 2.1A outlet)

    Cooling Type

    By Smart Cooling Fan

    Operating Temperature

    0-40

    Temperature Protection

    ≥70

    Green LED Indicator

    Green Light (Working)

    Red LED Indicator

    Red Light (Error Protection)

    Size

    332 x 160 x 88mm

    Weight

    3.2Kg


    Features

    1. MCU intelligent control, high-end MOSFET, better performance and better protection.
    2. Over voltage, low voltage, over temperature, over load, short circuit, reverse connect protection.

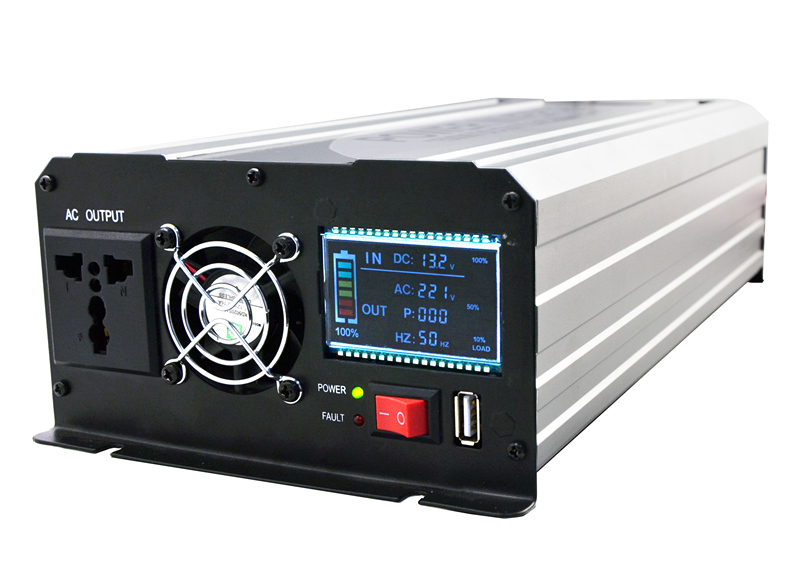

    3. With intelligent LCD display, shows the working status of the inverter at all times.
    4. With temperature controlled cooling fan.
    5. With the USB 2.1A outlet.
    6. Soft start function, increase loading capacity.
    7. High working efficiency, low temperature at full load.
    8. Aluminum alloy shell, heat eliminable.


    Application

    Can be widely used for solar energy system, wind energy system, fridge, refrigerator, air-condition, water pump, motor, car, LED light, camera, fan, hair dryer, electric light, electric kettle, TV set, CD player, mobile phone, laptop, portable device, etc.
