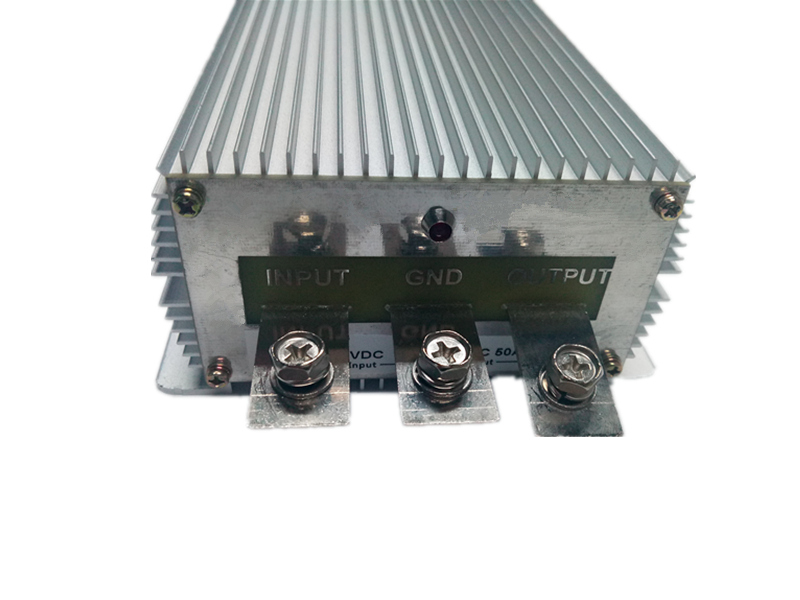

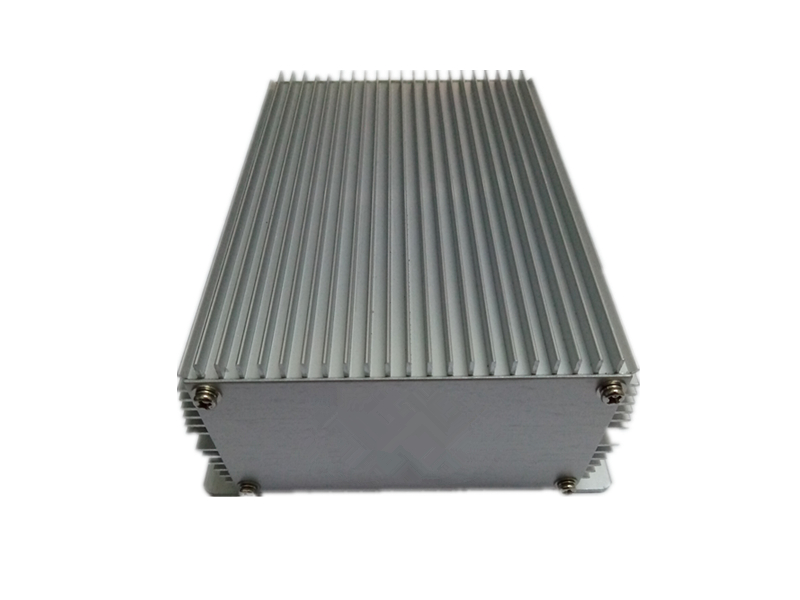

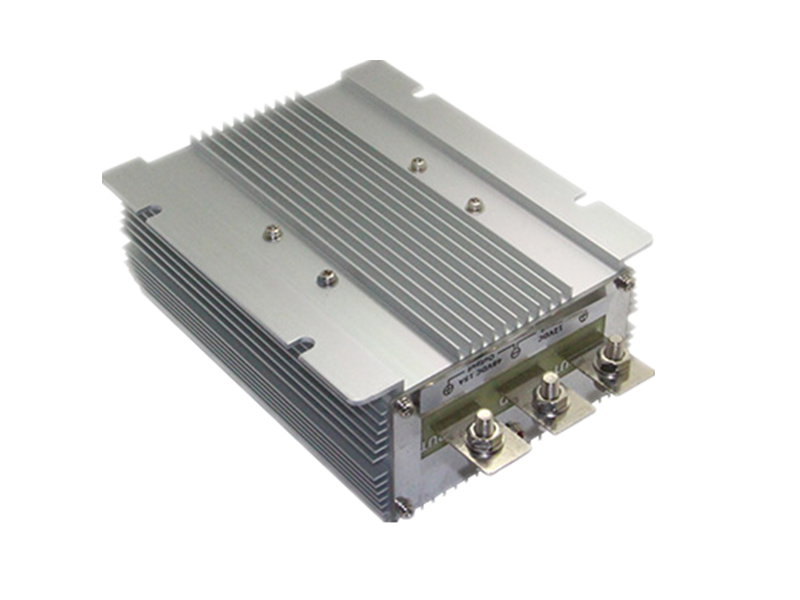

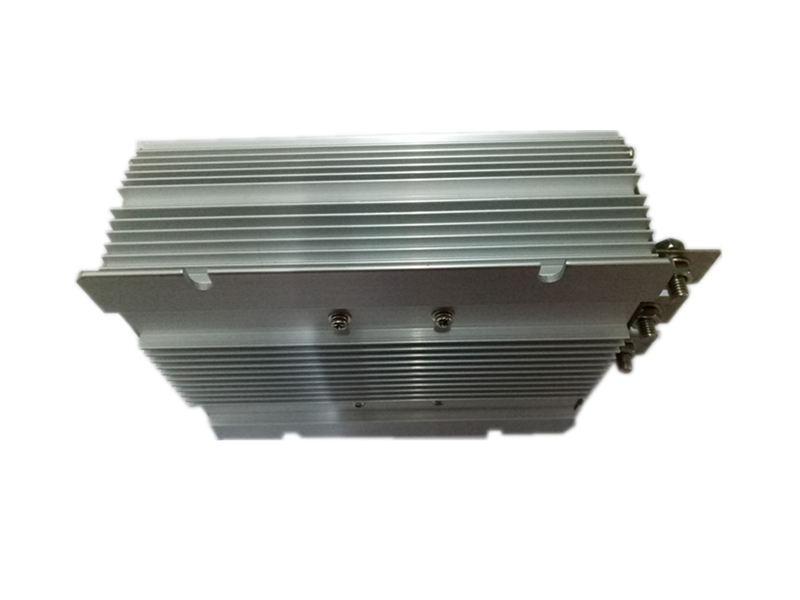

40A DC48V To DC24V Buck Converter

Products » DC To DC Converter » 48V To 24V Converter

  • Name :

    40A DC48V To DC24V Buck Converter

  • Color:

    Silver

  • Size:

    150 x 127 x 63mm

  • Material:

    Aluminum alloy shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SKA-40A-48V-24V

    Input Voltage

    DC40V-60V

    Output Voltage

    DC24V

    Output Current

    40A

    Output Power

    960W

    Ripple

    <200mVp

    Static Current

    <60mA

    Transfer Efficiency

    ≥95%

    Working Temperature

    -30~80

    IP Rating

    IP68

    Size

    150 x 127 x 63mm

    Weight

    1.8Kg

    Packing

    Neutral packing

    Warranty

    2 Years

    Certification

    CE & RoHS

    Features

    1.High-end integrated switching regulator module manufacturing.

    2.Over voltage, over current, over temperature, short circuit protection.

    3.Aluminum alloy shell, heat eliminable.

    Application

    Can be widely used for car, interphone, LED light, FM audio system, surveillance system, etc.
