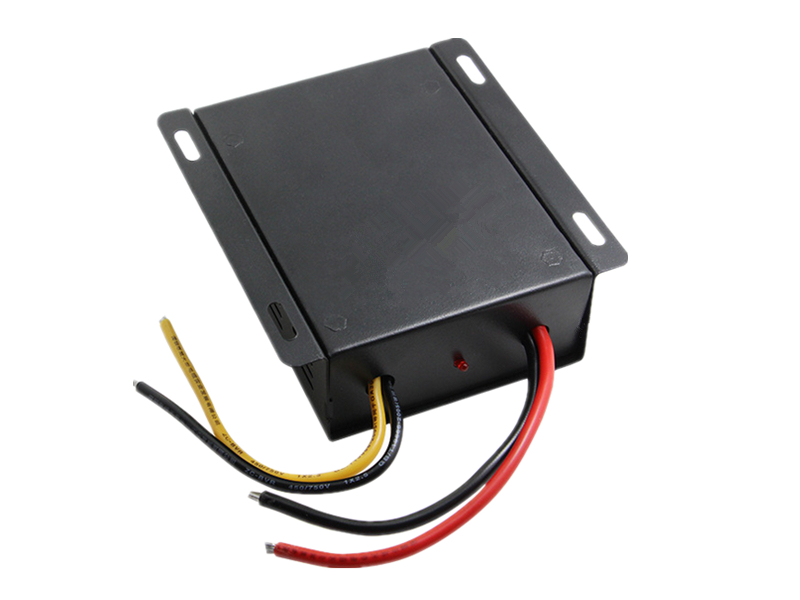

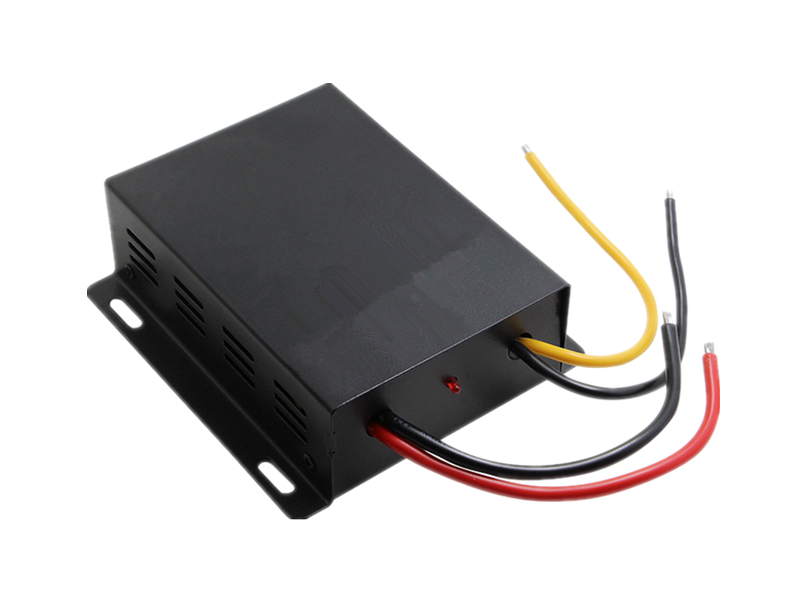

360W 10A DC12V To DC36V Boost Converter

Products » DC To DC Converter » 12V To 36V Converter

  • Name :

    360W 10A DC12V To DC36V Boost Converter

  • Color:

    Black

  • Size:

    118 x 87 x 40mm

  • Material:

    Iron shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SKB-360W-12V-36V

    Input Voltage

    DC9V-22V

    Output Voltage

    DC36V

    Output Current

    10A

    Output Power

    360W

    Ripple

    <40mVp

    Static Current

    <25mA

    Transfer Efficiency

    ≥95%

    Working Temperature

    -40~85

    Size

    118 x 87 x 40mm

    Weight

    0.45Kg

    Packing

    Neutral packing

    Warranty

    2 Years

    Certification

    CE & RoHS

    Features

    1.High-end integrated switching regulator module manufacturing.

    2.Over voltage,over current,over temperature,short circuit protection.

    Application

    Can be widely used for car,interphone,LED light,FM audio system,surveillance system,etc.
