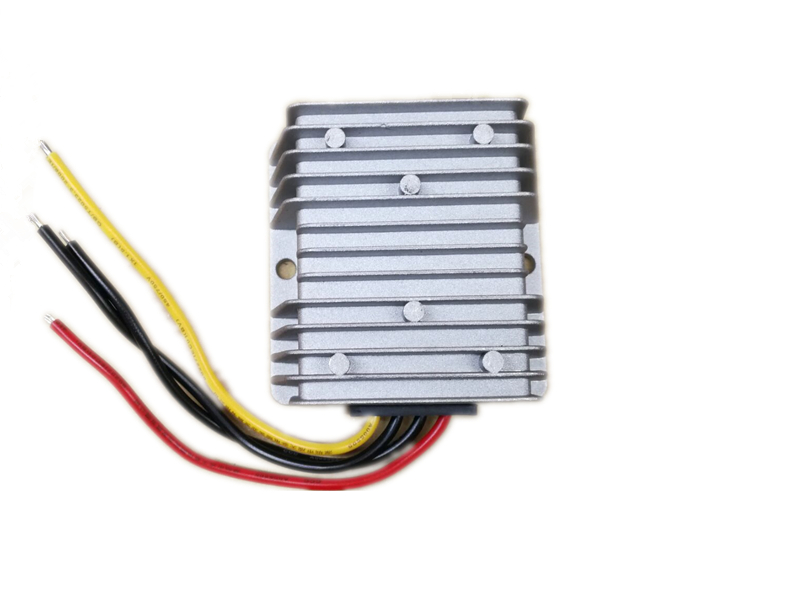

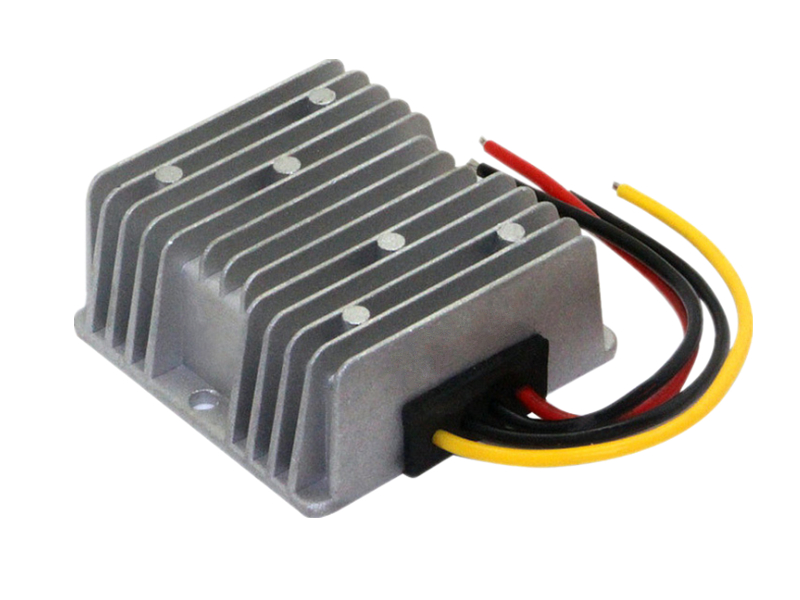

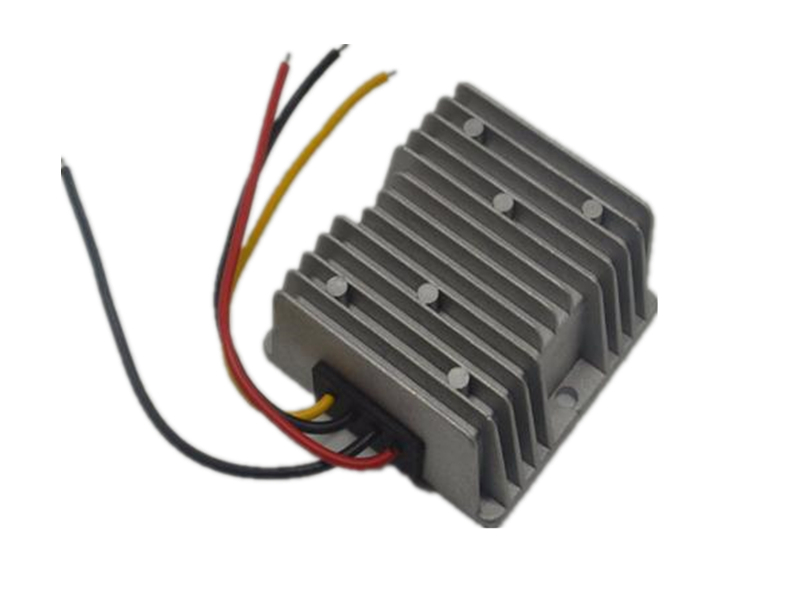

144W 3A DC12V To DC48V Boost Converter

Products » DC To DC Converter » 12V To 48V Converter

  • Name :

    144W 3A DC12V To DC48V Boost Converter

  • Color:

    Silver

  • Size:

    74 x 74 x 32mm

  • Material:

    Aluminum alloy shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SKB-144W-12V-48V

    Input Voltage

    DC9V-24V

    Output Voltage

    DC48V

    Output Current

    3A

    Output Power

    144W

    Ripple

    <40mVp

    Static Current

    <25mA

    Transfer Efficiency

    ≥95%

    Working Temperature

    -40~85

    IP Rating

    IP67

    Size

    74 x 74 x 32mm

    Weight

    0.3Kg

    Packing

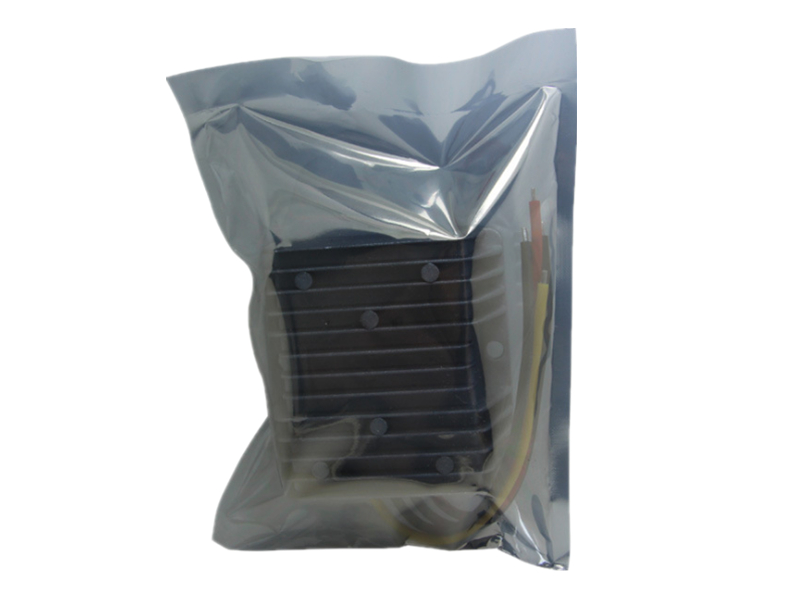

    Neutral packing

    Warranty

    2 Years

    Certification

    CE & RoHS

    Features

    1.High-end integrated switching regulator module manufacturing.

    2.Over voltage,over current,over temperature,short circuit protection.

    3.Aluminum alloy shell, heat eliminable.

    Application

    Can be widely used for car,interphone,LED light,FM audio system,surveillance system,etc.
