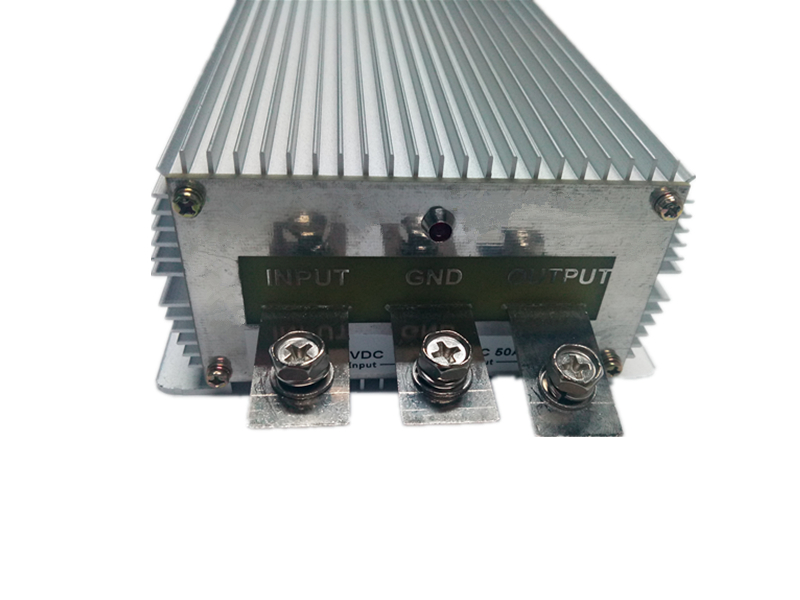

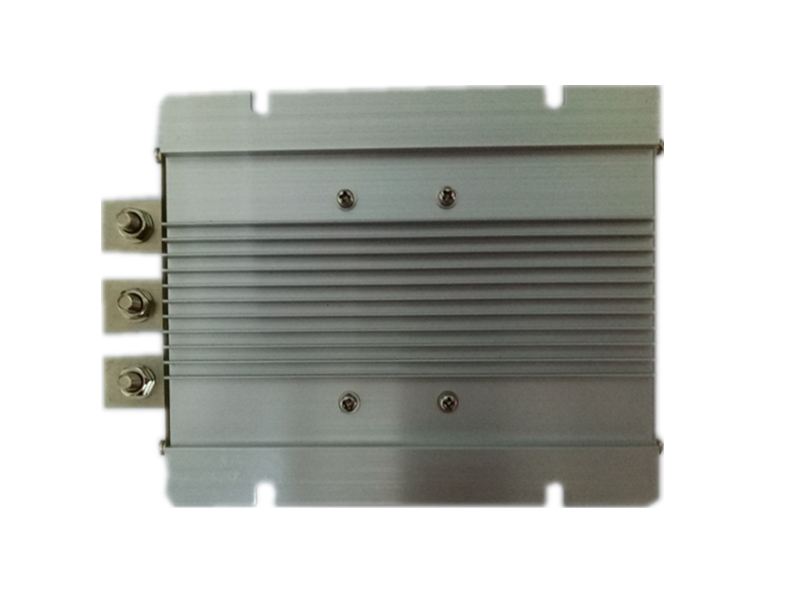

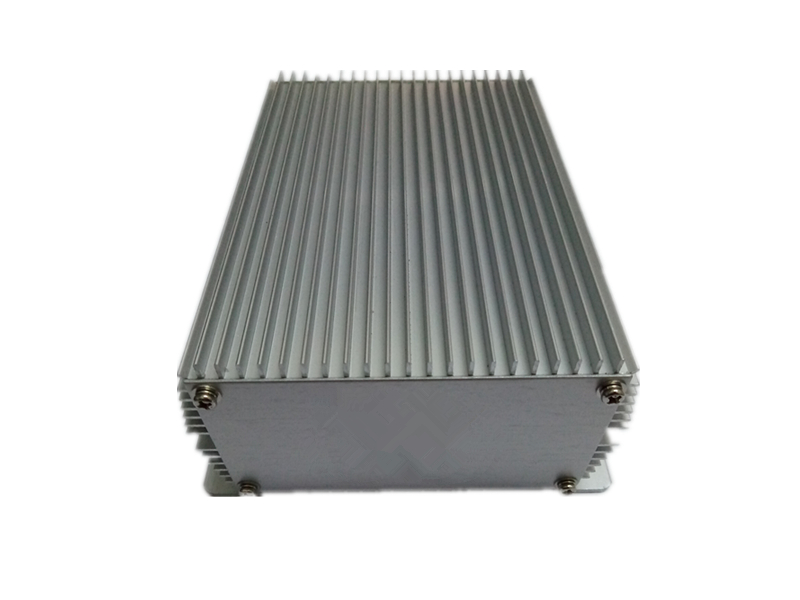

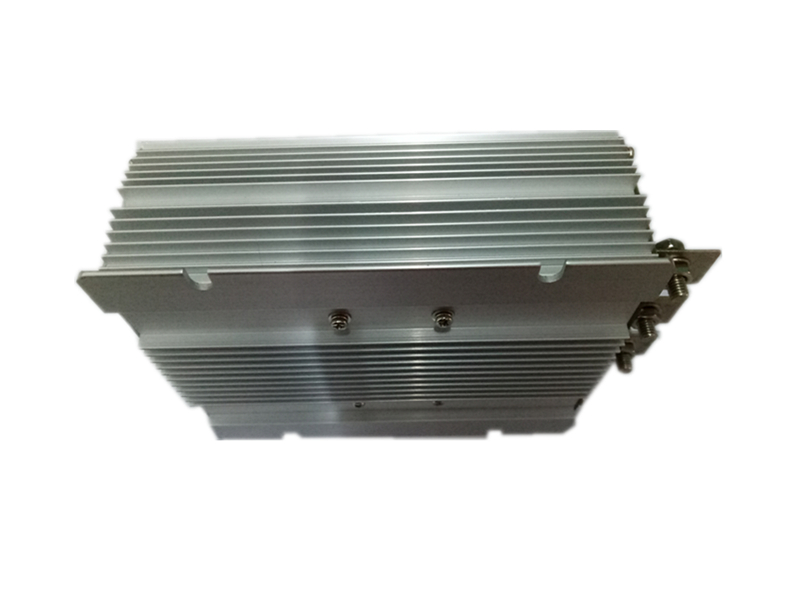

60A DC36V To DC12V Buck Converter

Products » DC To DC Converter » 36V To 12V Converter

  • Name :

    60A DC36V To DC12V Buck Converter

  • Color:

    Silver

  • Size:

    150 x 127 x 63mm

  • Material:

    Aluminum alloy shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SKA-60A-36V-12V

    Input Voltage

    DC30V-60V

    Output Voltage

    DC12V

    Output Current

    60A

    Output Power

    720W

    Ripple

    <200mVp

    Static Current

    <70mA

    Transfer Efficiency

    ≥95%

    Working Temperature

    -30~80

    IP Rating

    IP68

    Size

    150 x 127 x 63mm

    Weight

    1.8Kg

    Packing

    Neutral packing

    Warranty

    2 Years

    Certification

    CE & RoHS

    Features

    1.High-end integrated switching regulator module manufacturing.

    2.Over voltage,over current,over temperature,short circuit protection.

    3.Aluminum alloy shell, heat eliminable.

    Application

    Can be widely used for car,interphone,LED light,FM audio system,surveillance system,etc.
