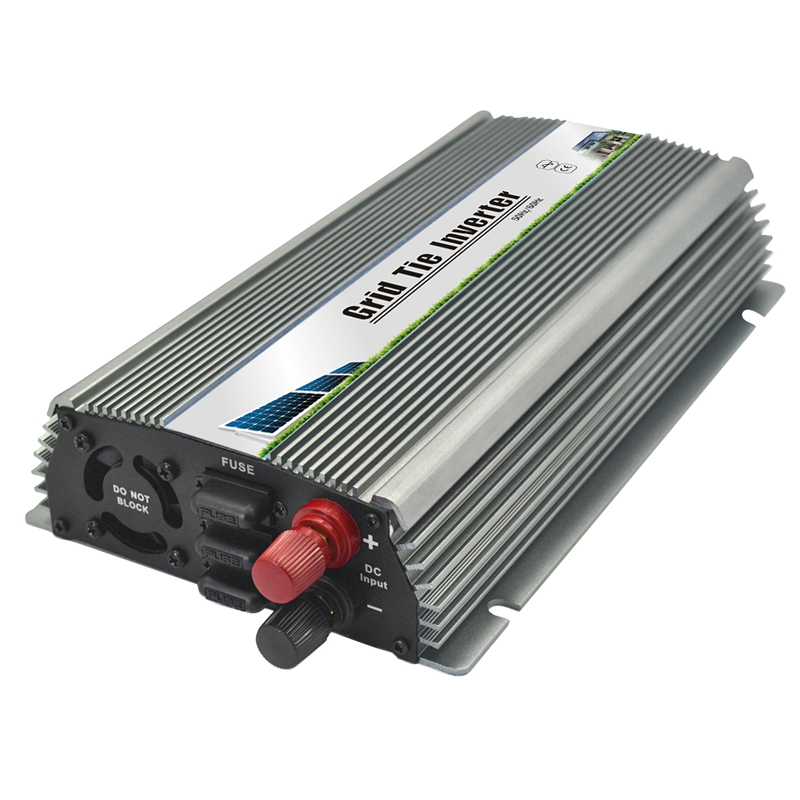

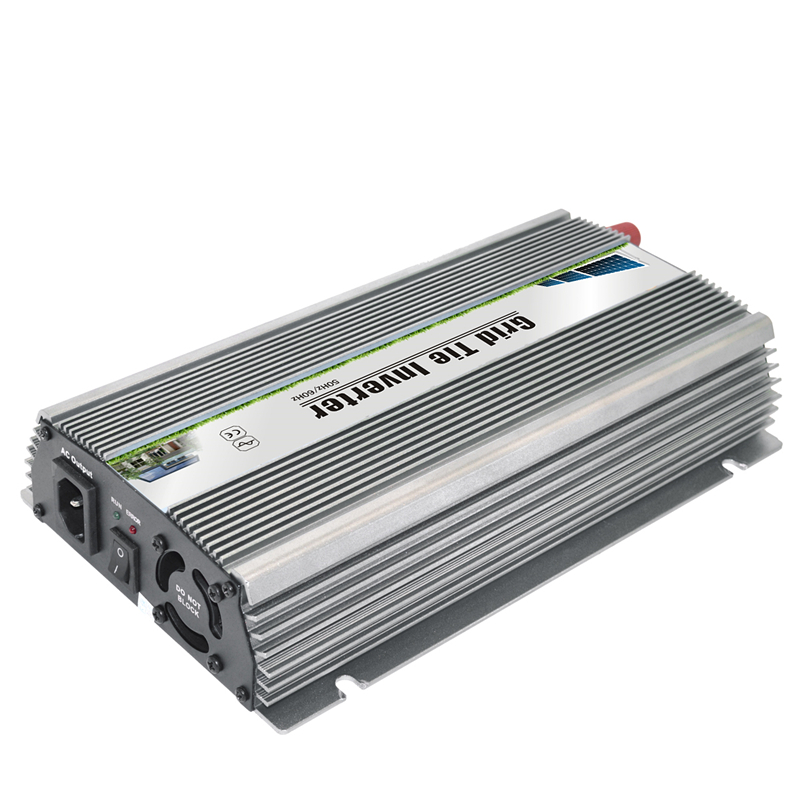

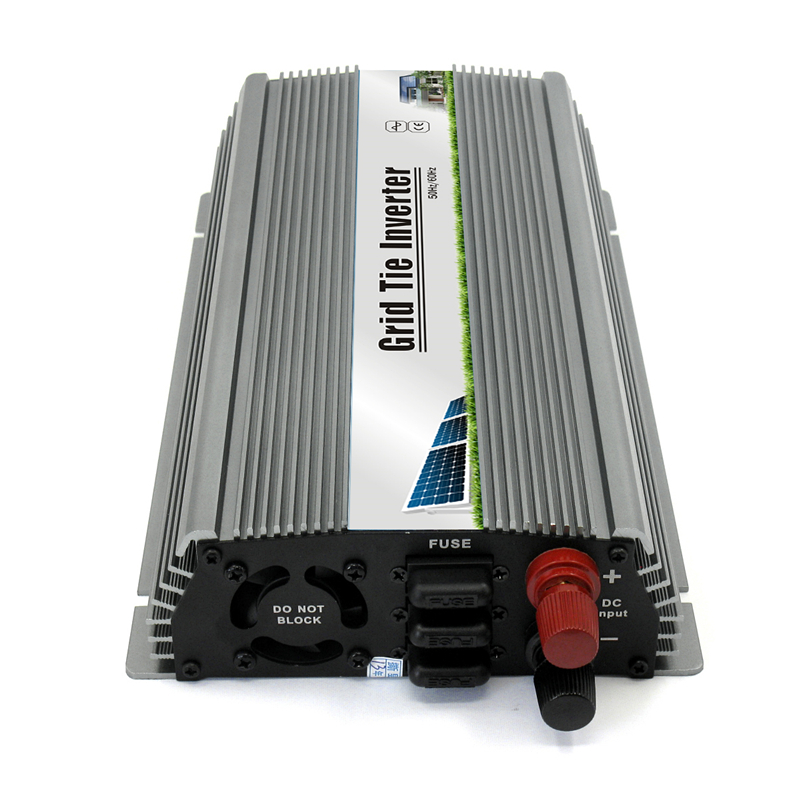

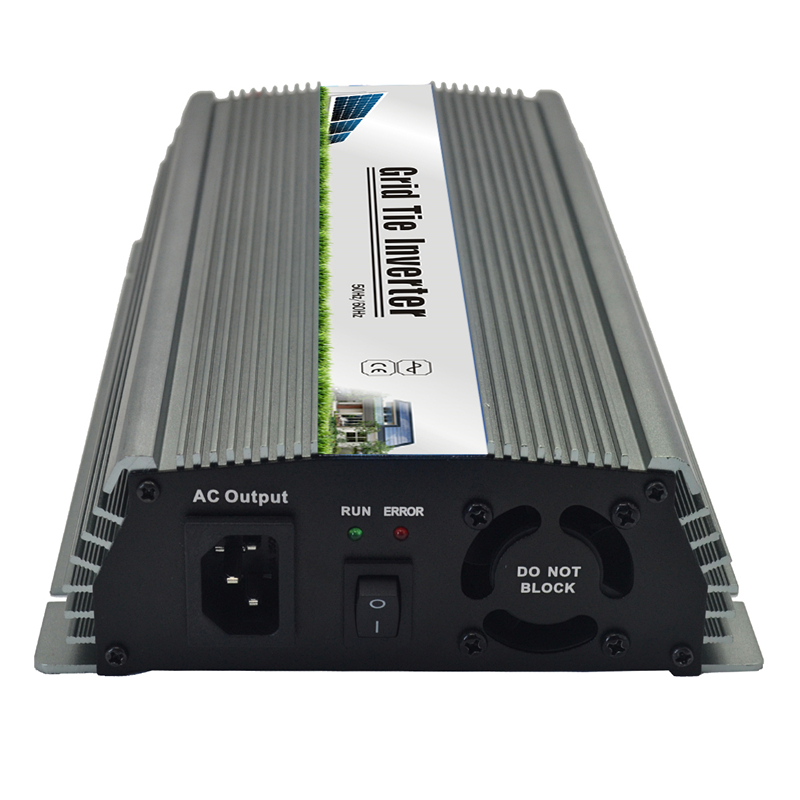

1000W Grid Tie Inverter DC20-45V

Products » Grid Tie Inverter » PV Grid Tie Inverter

  • Name :

    1000W Grid Tie Inverter DC20-45V

  • Color:

    Silver Grey

  • Size:

    310 x 165 x 53mm

  • Material:

    Aluminum alloy shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SK-1000W-GT10528V

    SK-1000W-GT2045V

    Rated Power

    1000W

    Compatible With Solar Panels

    36 cells/18V                Vmp:18-21V , Voc:20-24V



    60cells/24V                 Vmp:26-30V , Voc:34-38V    72 cells/36V                   Vmp:35-39V , Voc:42-46V

    DCInputRange

    18V(10.5-28V)

    24V/36V(20-45V)

    MPPT Voltage

    15-23VDC

    24-36VDC

    DC MAX Current

    80A

    60A

    AC Output

    120VAC(90-140VAC)  or  230VAC(190-260VAC)

    Frequency

    50Hz/60Hz(Auto control)

    Output Waveform

    Pure Sine Wave

    Power Factor

    >97.5%

    THD

    <5%

    Phase Shift

    <2%

    Stable Efficiency

    ≥85%

    Protection

    Islanding,Short-circuit,Low Voltage, Over Voltage,Over Temperature Protection

    Working Temperature

    -25-+70

    Working Humidity

    0%~90%RH non-condensing

    Waterproof

    Indoor design

    Show

    Luminous Diode(LED)

    Cooling Type

    By Cooling Fan

    Stand-by Power

    <1W

    Grid Disturbance

    EN 50178+EN 62109-1+VDE0126-1-12

    Grid Detection

    DIN VDE 1026 UL1741

    Size

    310 x 165 x 53mm

    Weight

    2.8Kg


    Features

    1.Unique circuit design,choice of import industrial electronic components,higher efficiency,more stable performance.
    2.Creative MPPT technology,efficiency more than 99%,faster and more sensitive reaction,more reliable.
    3.Parallel type design for DC input and modularization design for inverter,small volume,distributed installation,easy for system configuration,flexible for combination,strong expansibility of system.

    4.Adopting high-frequency isolation transformer type,high efficiency and high security.
    5.Perfect electrical protection function.

    6.Aluminum alloy housing,not rust,heat-resisting and cold-resistant as well as anti-corrosion.

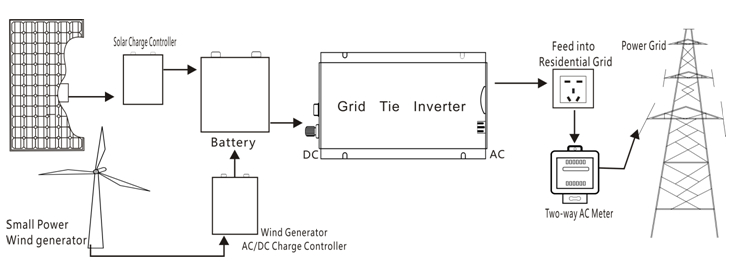

    Application

    Can be widely used for on grid solar power system,on grid solar power station,wind power system,on grid residential roof-tops,on grid commercial / industrial roof-tops,etc.
