12V 300W Pure Sine Wave Inverter

Products » Pure Sine Wave Inverter » 12V Inverter

  • Name :

    12V 300W Pure Sine Wave Inverter

  • Color:

    Blue

  • Size:

    140 x 95 x 55mm

  • Material:

    Aluminum alloy shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SK-300W Series

    Rated Power

    300W

    Continuous Power

    300W

    Peak Power

    600W

      Input Section

    DC Input Voltage

    12V

    24V

    48V

    DC Operating Voltage

    11-15V

    21-29V

    40-60V

    DC Low Voltage Protection

    9-11V

    19-21V

    39-40V

    DC Low Voltage Alarm

    9-11V

    19-21V

    39-40V

    DC Over Voltage Protection

    ≥15V

    ≥29V

    ≥60V

    Fuse

    20A*2

    10A*2

    5A*2

    Quiescent Current

    ≤0.5A

    ≤0.25A

    ≤0.13A

    Output Section

    Output Waveform

    Pure Sine Wave

    Output Voltage

    220V-240V

    Output Frequency

    50Hz±1%

    Transfer Efficiency

    ≥93%

    Overload Protection

    Yes

    Short Circuit Protection

    Yes

    Cooling Type

    By Cooling Fan

    Operating Temperature

    -10℃-50

    Temperature Protection

    70

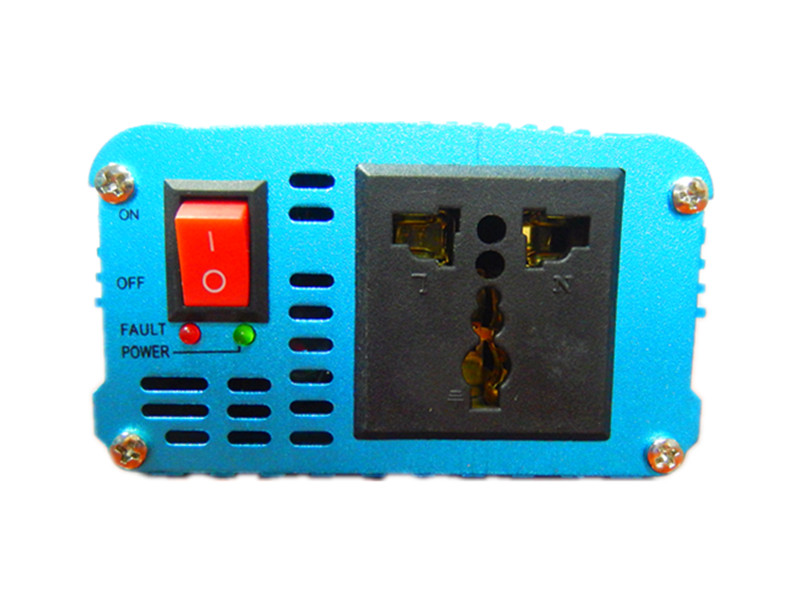

    Green LED Indicator

    Green Light (Working)

    Red LED Indicator

    Red Light (Error Protection)

    Size

    140 x 95 x 55mm

    Weight

    0.85Kg


    Features

    1. High-end chip, high-performance CPU, improve the working reliability.
    2. Over voltage, low voltage, over temperature, over load, short circuit, reverse connect protection.
    3. Sound alarm, with cooling fan.
    4. Soft-start function, increase loading capacity.
    5. Aluminum alloy shell, heat eliminable.


    Application

    Can be widely used for solar energy system, wind energy system, fridge, refrigerator, air-condition, water pump, motor, car, LED light, camera, fan, hair dryer, electric light, electric kettle, TV set, CD player, mobile phone, laptop, portable device, etc.
