12V 500W Pure Sine Wave Inverter

Products » Pure Sine Wave Inverter » 12V Inverter

Name :

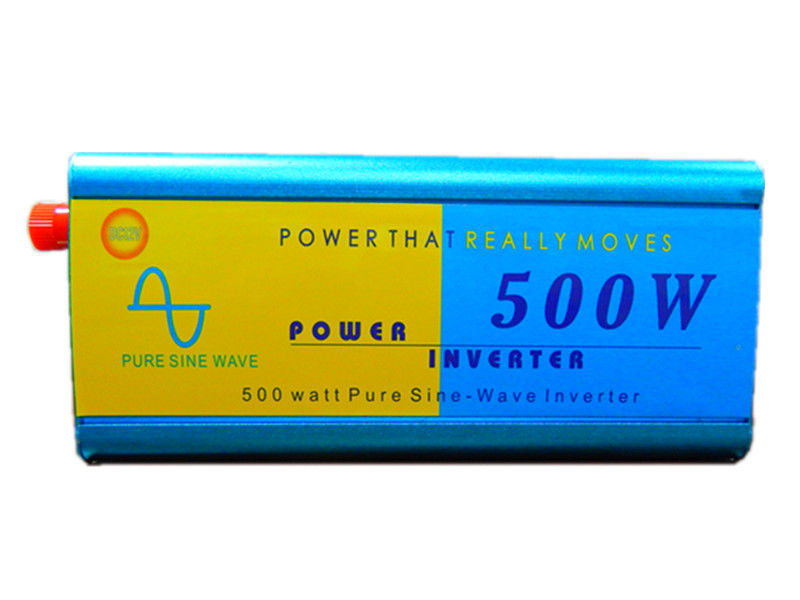

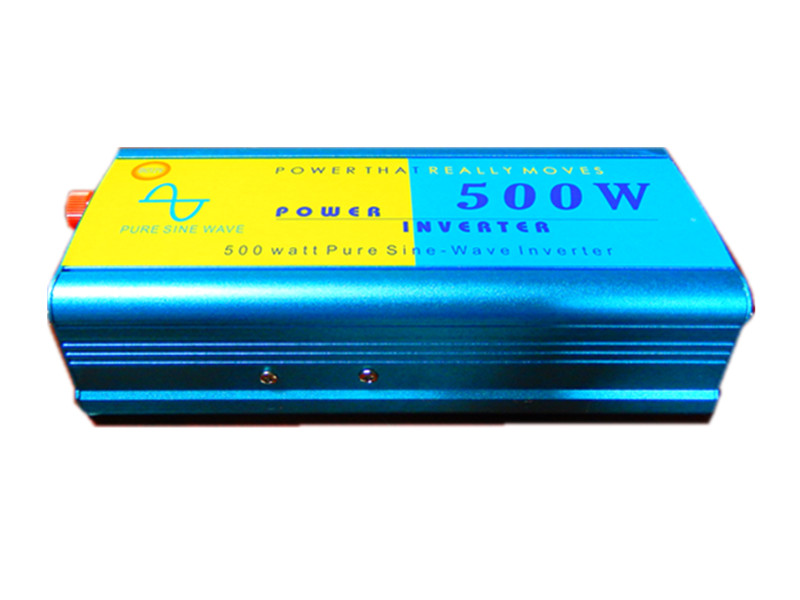

12V 500W Pure Sine Wave Inverter

Color:

Blue

Size:

200 x 95 x 55mm

Material:

Aluminum alloy shell

[ Close ]

Description:

Specification

Model		SK-500W Series
Rated Power		500W
Continuous Power		500W
Peak Power		1000W
Input Section	DC Input Voltage	12V	24V	48V
	DC Operating Voltage	11-15V	21-29V	40-60V
	DC Low Voltage Protection	9-11V	19-21V	39-40V
	DC Low Voltage Alarm	9-11V	19-21V	39-40V
	DC Over Voltage Protection	≥15V	≥29V	≥60V
	Fuse	30A*4	15A*4	10A*4
	Quiescent Current	≤0.5A	≤0.25A	≤0.13A
Output Section	Output Waveform	Pure Sine Wave
	Output Voltage	220V-240V
	Output Frequency	50Hz±1%
Transfer Efficiency		≥93%
Over Load Protection		Yes
Short Circuit Protection		Yes
Cooling Type		By Cooling Fan
Operating Temperature		-10℃--+50℃
Temperature Protection		≥70℃

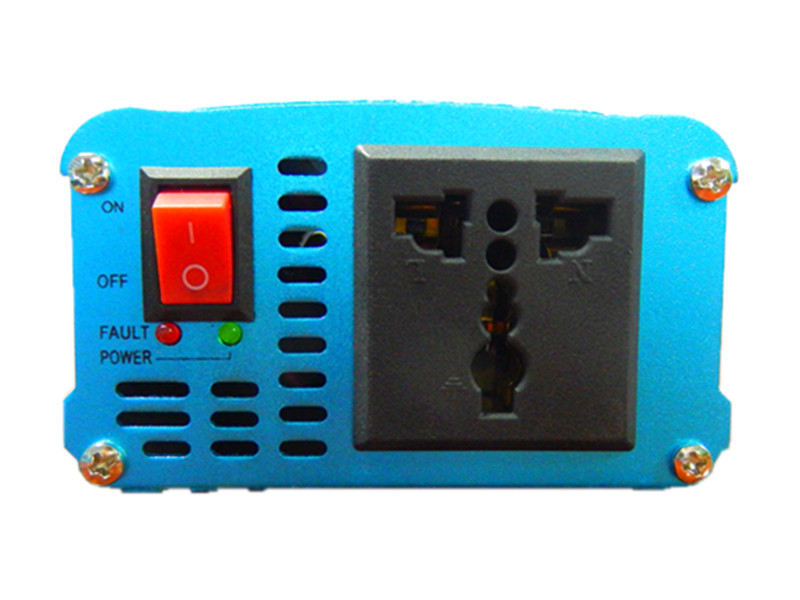

Green LED Indicator		Green Light (Working)
Red LED Indicator		Red Light (Error Protection)
Size		200 x 95 x 55mm
Weight		1.2Kg

Features

1. High-end chip, high-performance CPU, improve the working reliability.
2. Over voltage, low voltage, over temperature, over load, short circuit, reverse connect protection.

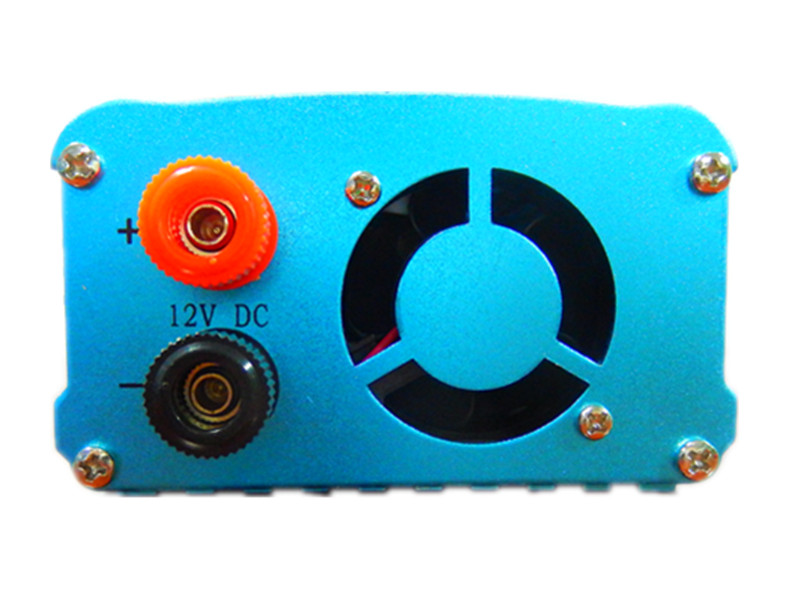

3. Sound alarm, with cooling fan.
4. Soft start function, increase loading capacity.
5. Aluminum alloy shell, heat eliminable.

Application

Can be widely used for solar energy system, wind energy system, fridge, refrigerator, air-condition, water pump, motor, car, LED light, camera, fan, hair dryer, electric light, electric kettle, TV set, CD player, mobile phone, laptop, portable device, etc.
