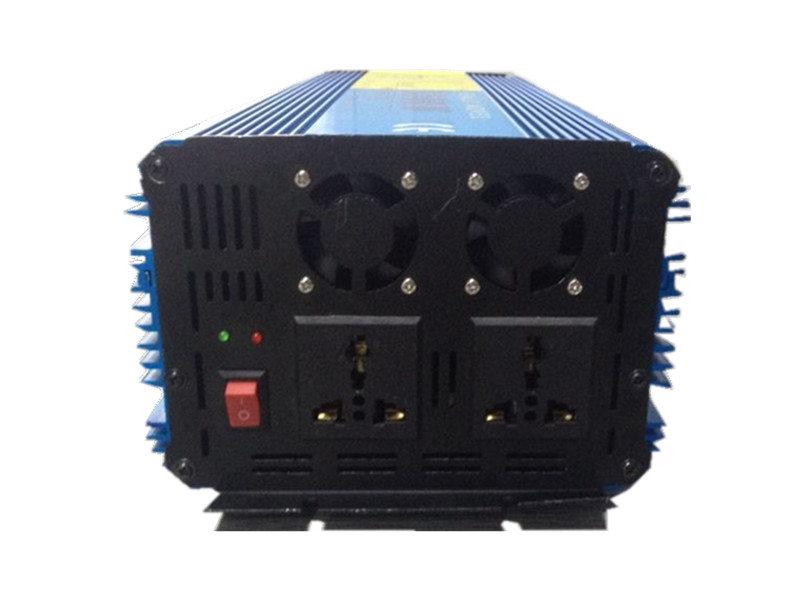

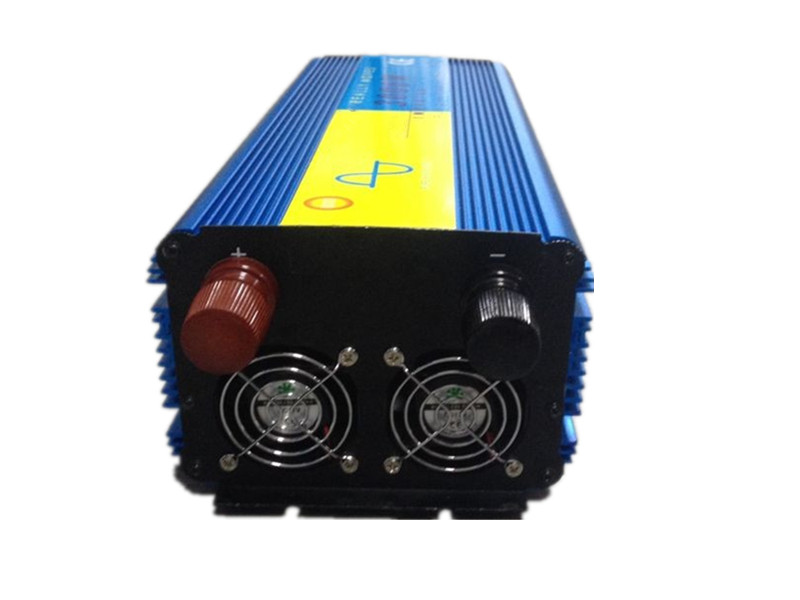

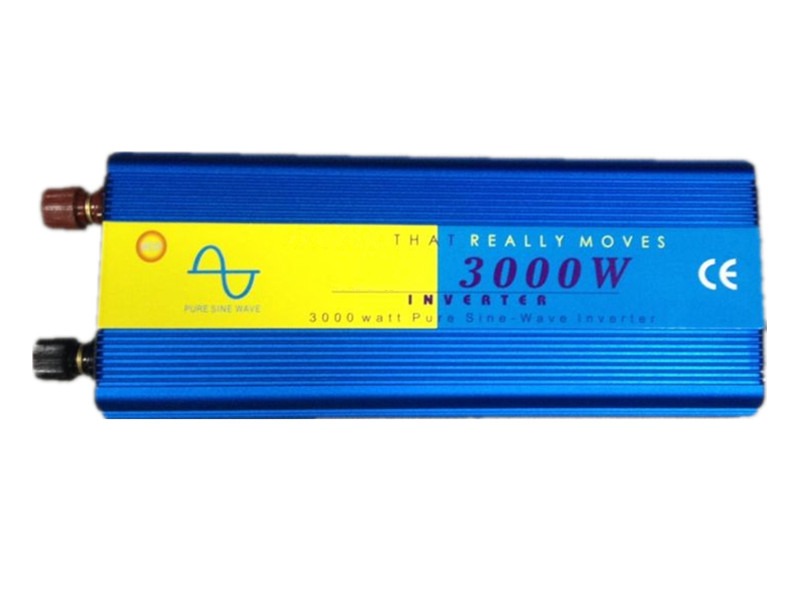

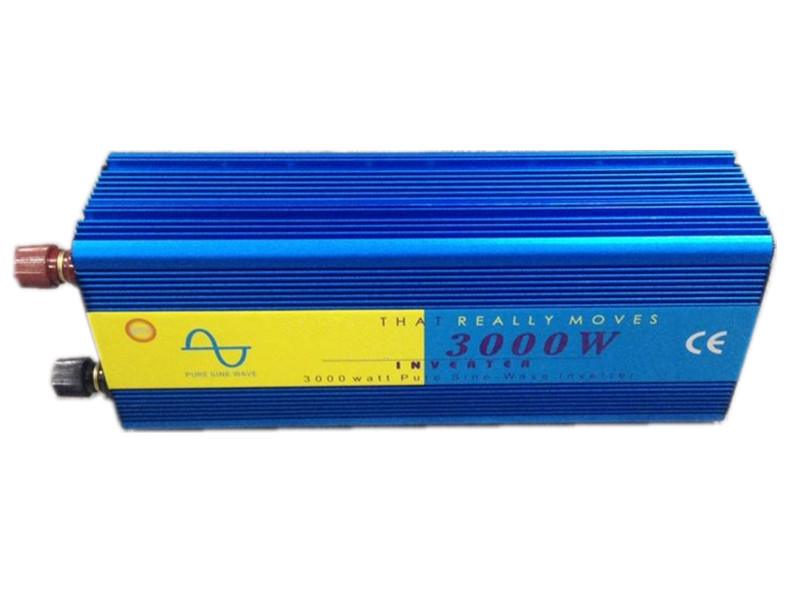

24V 3000W Pure Sine Wave Inverter

Products » Pure Sine Wave Inverter » 24V Inverter

  • Name :

    24V 3000W Pure Sine Wave Inverter

  • Color:

    Blue

  • Size:

    410 x 170 x 117mm

  • Material:

    Aluminum alloy shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specifiaction


    Model

    SK-3000W Series

    Rated Power

    3000W

    Continuous Power

    3000W

    Peak Power

    6000W

    Input Section

    DC Input Voltage

    12V

    24V

    DC Operating Voltage

    11-15V

    21-29V

    DC Low-voltage Protection

    9-10.5V

    18.5-20.5V

    DC Low-voltage Alarm

    9.5-11V

    19.5-21V

    DC Over-voltage Protection

    ≥15V

    ≥29V

    Fuse

    40A*3

    20A*3

    Quiescent Current

    ≤1.6A

    ≤1.6A

    Output Section

    Output Waveform

    Pure Sine Wave

    Output Voltage

    220V±10%

    Output Frequency

    50Hz±1%

    Transfer Efficiency

    ≥93%

    Overload Protection

    3000W--3600W

    Short-circuit Protection

    Yes

    Cooling Type

    By Cooling Fan

    Operating Temperature

    -10--+50

    Temperature Protection

    +60--+70

    Green LED Indicator

    Green Light(Working),Flash(Overload Protection)

    Red LED Indicator

    Red Light(Error Protection)

    Size

    410 x 170 x 117mm

    Weight

    6.8Kg


    Features

    1.High-end chip,high-performance CPU,improve the working reliability.
    2.Overvoltage,low voltage,over temperature,overload,short circuit,reverse polarity protection.
    3.Sound alarm,with cooling fan.
    4.Soft-start function,increase loading capacity.
    5.Aluminum alloy shell,Heat eliminable.


    Application

    Can be widely used for solar energy,wind energy,fridge,refrigerator,air-condition,water pump,car,LED light,camera,fan,hair dryer,electric light,electric kettle,TV set,CD player,mobile phone,laptop,portable device,etc.
