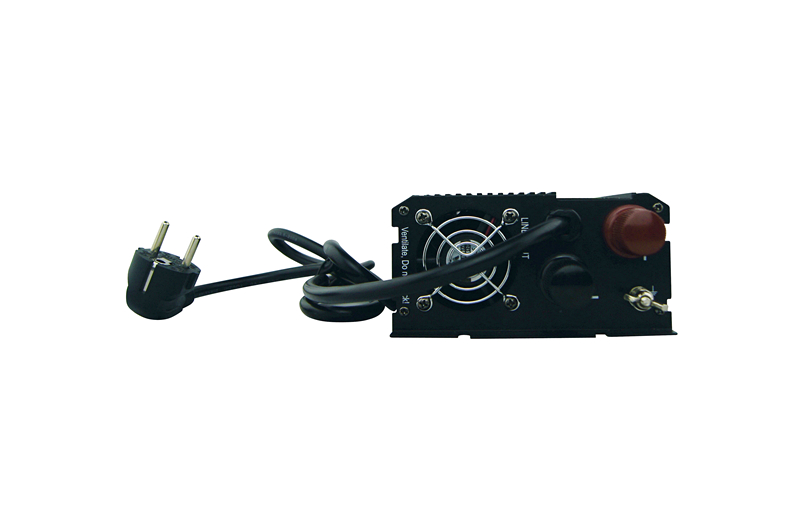

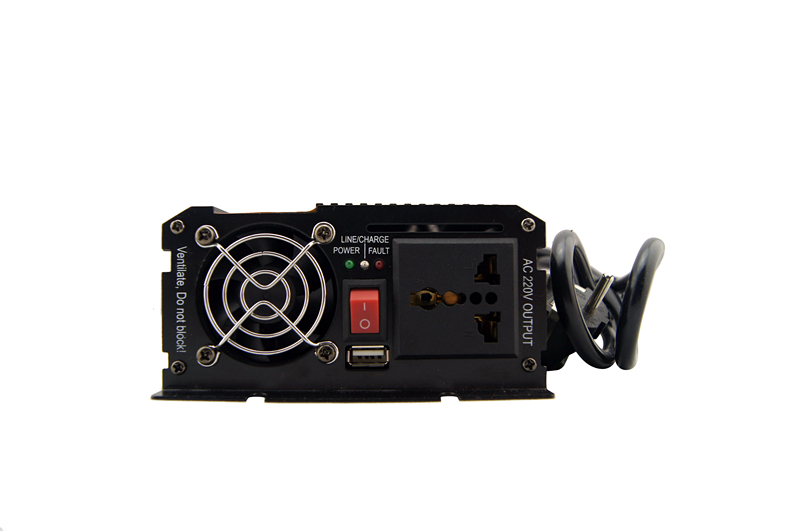

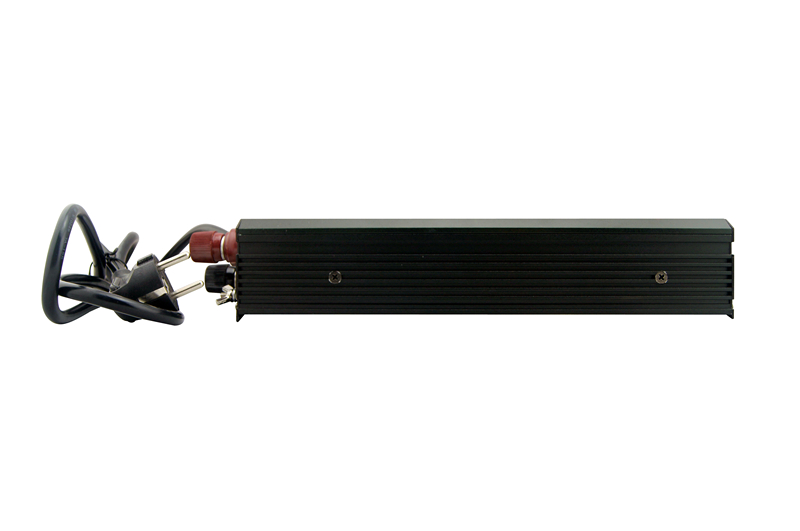

24V 1500W Modified Sine Wave Inverter With Charger

Products » Inverter With Charger » 24V Inverter

  • Name :

    24V 1500W Modified Sine Wave Inverter With Charger

  • Color:

    Black

  • Size:

    357 x 131 x 65mm

  • Material:

    Aluminum alloy shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SK-1500W Series

    Rated Power

    1500W

    Continuous Power

    1500W

    Peak Power

    3000W

    DC

    Input

    Section

    DC Input Voltage

    12V

    24V

    DC Operating Voltage

    11-15V

    21-29V

    DC Low-voltage Protection

    9-10.5V

    18.5-20.5V

    DC Low-voltage Alarm

    9.5-11V

    19.5-21V

    DC Over-voltage Protection

    ≥15V

    ≥29V

    Fuse

    40A*3

    20A*3

    Quiescent Current

    ≤1.4A

    ≤1.4A

    AC

    Input

    Section

    AC Input Voltage

    220V

    AC Input Frequency

    50Hz-60Hz

    AC Operating Voltage

    170V-250V

    AC Low-voltage Protection

    ≤150V

    AC Over-voltage Protection

    ≥250V

    AC Input Fuse

    10A

    Charge Mode

    Intelligent Positive and Negative Pulse Charge

    Charge Process

    Precharge, Main Charge, Floating Charge,Full Charge

    Charge Current

    15A

    Charge Voltage

    29V-32V

    AC

    Output Section

    Output Waveform

    Modified Sine Wave

    Output Voltage

    220V±10%

    Output Frequency

    50Hz-60Hz

    Transfer Efficiency

    ≥90%

    USB Output Voltage

    DC 5V(500mA)

    Overload Protection

    1500W--1800W

    Cooling Type

    By Smart Cooling Fan

    DC to AC Inverting Household Time

    ≤10ms

    Household Supply Inverting to DC time

    ≤10ms

    DC to AC Inverting Household Term

    In AC InputNormalVoltage

    Household Supply Inverting to DC Term

    No Electric Supply, AC Low-voltage,Over-voltage Protection

    Short-circuit Protection

    Yes

    Operating Temperature

    -10--+50

    Temperature Protection

    +60--+70

    Green LED Indicator

    Green Light(Working)

    Red LED Indicator

    Red Light(Charging)

    Size

    357 x 131 x 65mm

    Weight

    3.5Kg


    Features

    1.High-end chip,high-performance CPU,improve the working reliability.
    2.Overvoltage,low voltage,over temperature,overload,short circuit,reverse polarity protection.
    3.Sound alarm,with smart cooling fan,with USB outlet.
    4.Soft-start function,increase loading capacity.
    5.Aluminum alloy shell,Heat eliminable.


    Application

    Can be widely used for solar energy,wind energy,car,camera,fan,hair dryer,electric light,electric kettle,electric shaver,TV set,CD player,mobile phone,laptop,portable device,etc.
