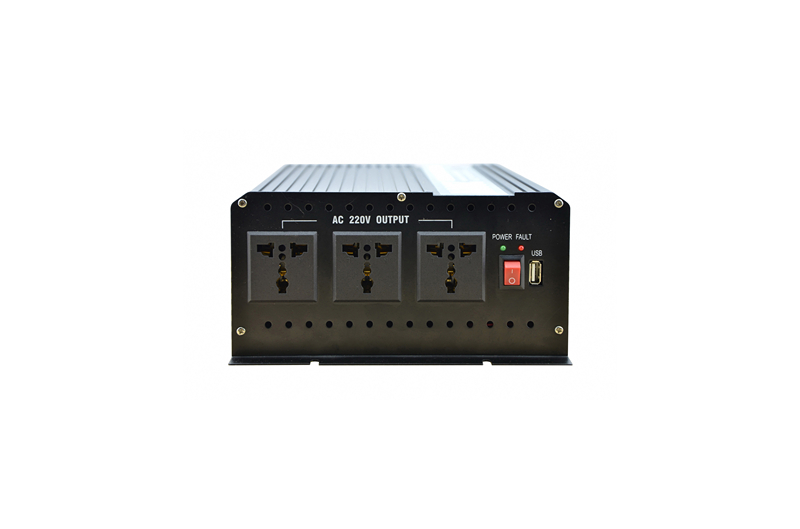

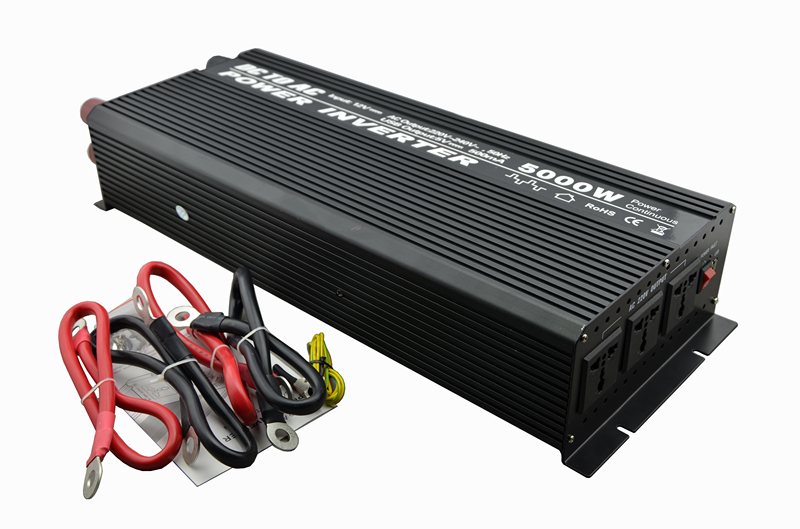

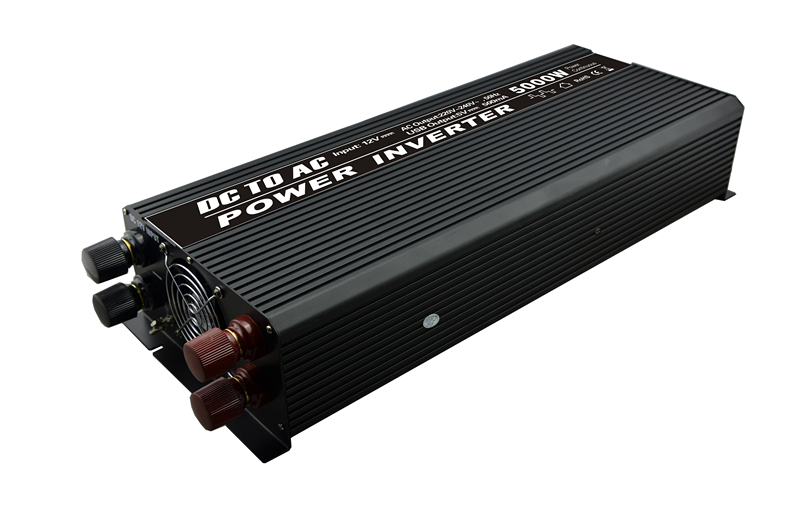

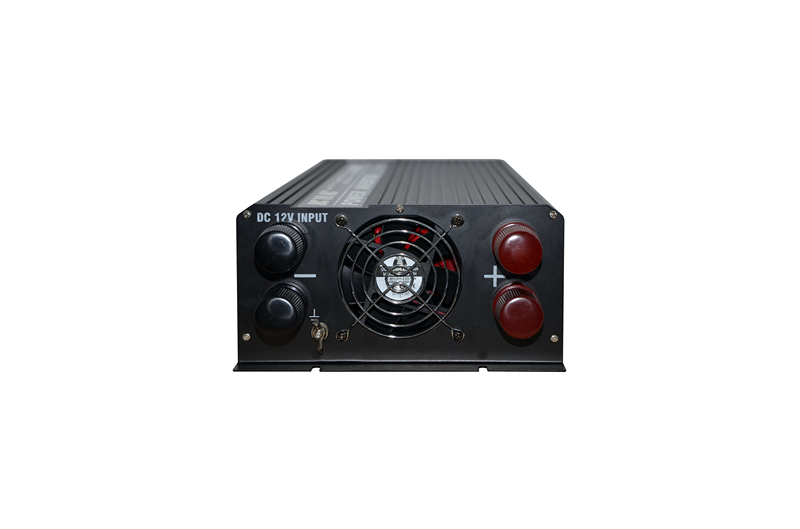

24V 5000W Modified Sine Wave Inverter

Products » Modified Sine Wave Inverter » 24V Inverter

Name :

24V 5000W Modified Sine Wave Inverter

Color:

Black

Size:

480 x 200 x 100mm

Material:

Aluminum alloy shell

[ Close ]

Description:

Specification

Model		SK-5000W Series
Rated Power		5000W
Continuous Power		5000W
Peak Power		10000W
Input Section	DC Input Voltage	12V	24V
	DC Operating Voltage	11-15V	21-29V
	DC Low-voltage Protection	9-10.5V	18.5-20.5V
	DC Low-voltage Alarm	9.5-11V	19.5-21V
	DC Over-voltage Protection	≥15V	≥29V
	Fuse	40A*3	20A*3
	Quiescent Current	≤1.6A	≤1.6A
Output Section	Output Waveform	Modified Sine Wave
	Output Voltage	220V±10%
	Output Frequency	50Hz-60Hz
Transfer Efficiency		≥90%
USB Output Voltage		DC 5V(800mA)
Overload Protection		5000W--6000W
Short-circuit Protection		Yes
Cooling Type		By Smart Cooling Fan
Operating Temperature		-10℃--+50℃
Temperature Protection		+60℃--+70℃
Green LED Indicator		Green Light(Working),Flash(Overload Protection)
Red LED Indicator		Red Light(Error Protection)
Size		480 x 200 x 100mm
Weight		8.5Kg

Features
1.High-end chip,high-performance CPU,improve the working reliability.
2.Overvoltage,low voltage,over temperature,overload,short circuit,reverse polarity protection.
3.Sound alarm,with smart cooling fan,with USB outlet.
4.Soft-start function,increase loading capacity.
5.Aluminum alloy shell,Heat eliminable.

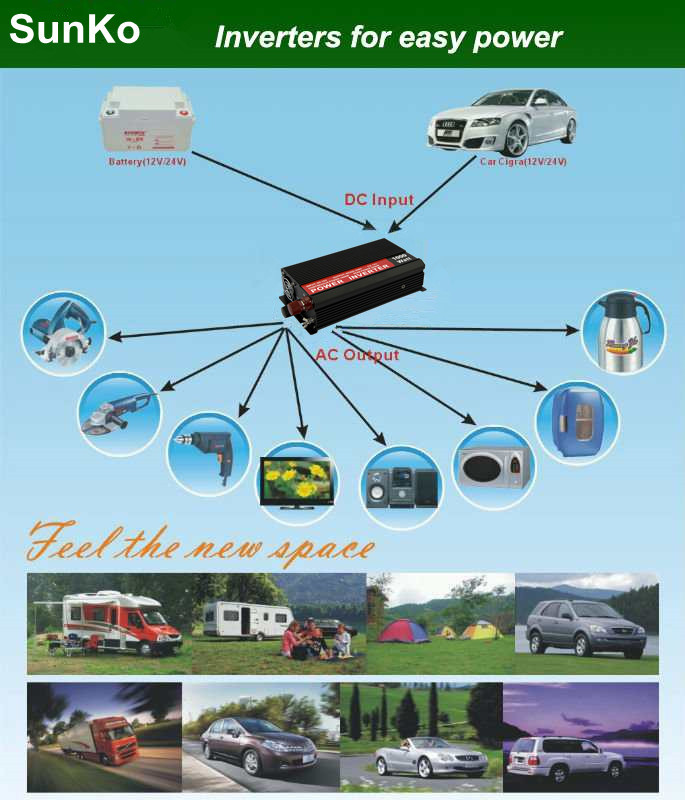

Application

Can be widely used for solar energy,wind energy,car,camera,fan,hair dryer,electric light,electric kettle,electric shaver,TV set,CD player,mobile phone,laptop,portable device,etc.
