30A DC24V To DC12V Buck Converter

Products » DC To DC Converter » 24V To 12V Converter

  • Name :

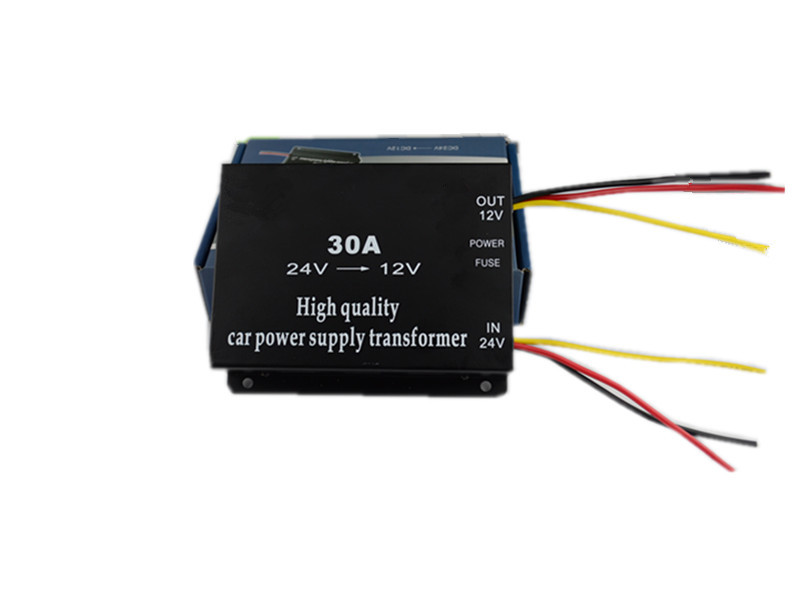

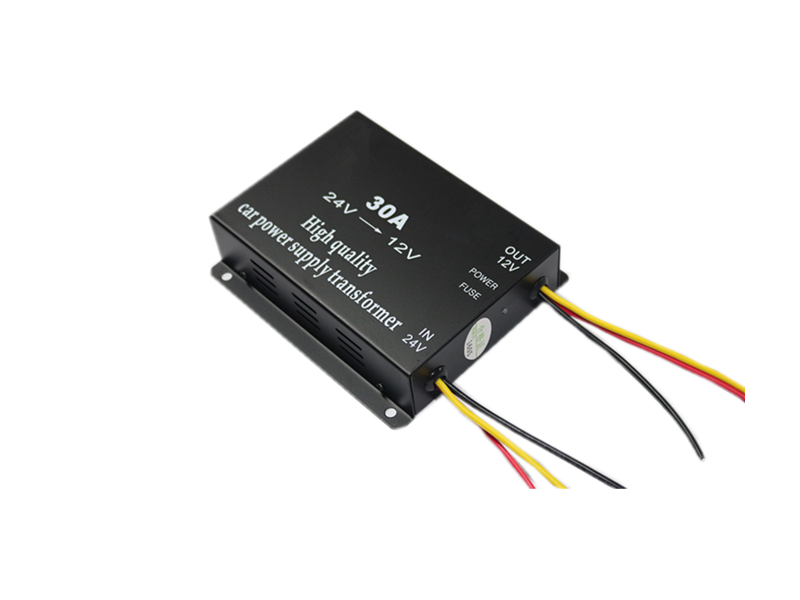

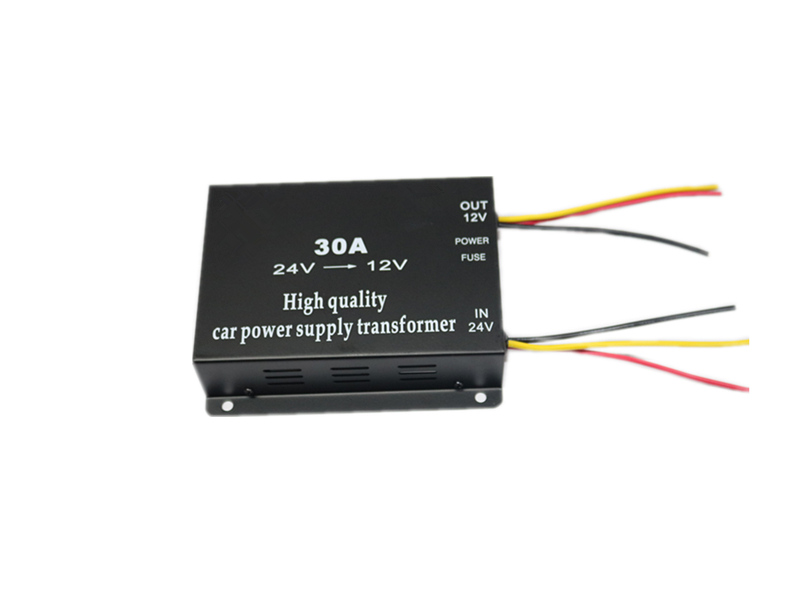

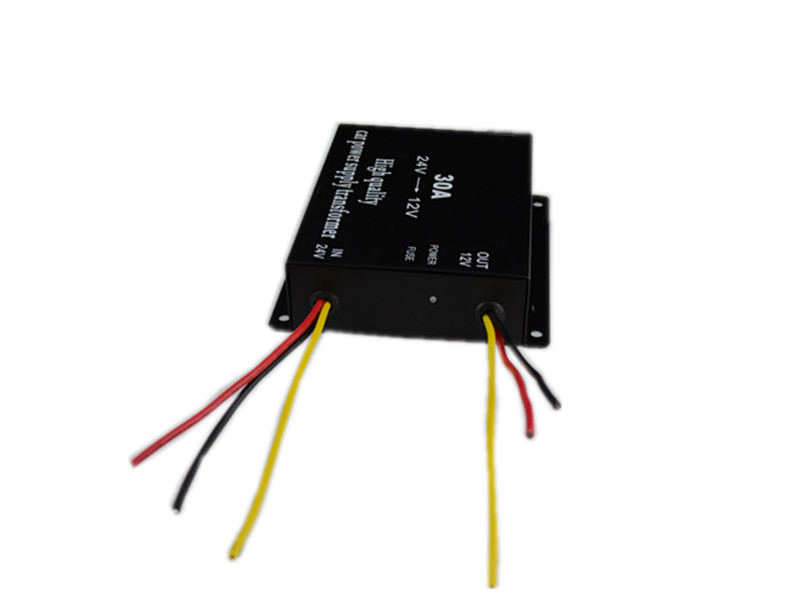

    30A DC24V To DC12V Buck Converter

  • Color:

    Black

  • Size:

    160 x 138 x 40mm

  • Material:

    Iron shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SK-30A-24V-12V

    Input Voltage

    DC13V-40V

    Output Voltage

    DC12V±10%

    Output Current

    30A

    Transfer Efficiency

    ≥95%

    Rated Power

    360W

    Max Power

    380W

    Working Temperature

    -20~80

    Temperature Protection

    80±10%

    Static current

    <40mA

    Size

    160 x 138 x 40mm

    Weight

    0.85Kg

    Packing

    Neutral packing

    Warranty

    2 Years

    Certification

    CE

    Features

    1.High-end integrated switching regulator module manufacturing.

    2.Overvoltage,overcurrent,over temperature,short circuit protection.

    Application

    Can be widely used for car,bus,truck,interphone,FM audio system,surveillance system,etc.
