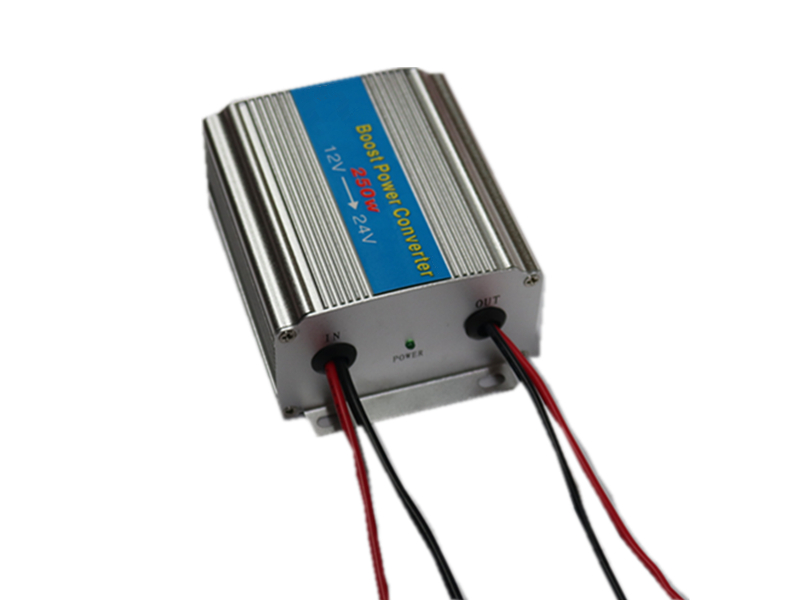

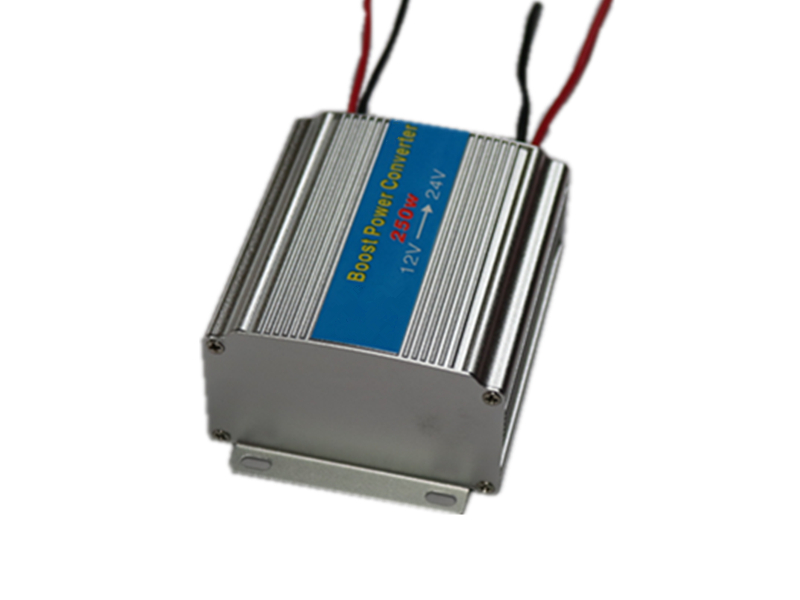

250W 10A DC12V To DC24V Boost Converter

Products » DC To DC Converter » 12V To 24V Converter

  • Name :

    250W 10A DC12V To DC24V Boost Converter

  • Color:

    Silver

  • Size:

    117x 87 x 52mm

  • Material:

    Aluminum alloy shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SK-250W-12V-24V

    Input Voltage

    DC10V-16V

    Output Voltage

    DC24V±3%

    Max Output Current

    10A

    Rated Power

    250W

    Max Power

    300W

    Transfer Efficiency

    >90%

    Quiescent Current

    <100mA

    Working Temperature

    -20~+55

    Size

    117 x 87 x 52mm

    Weight

    0.5Kg

    Packing

    Neutral packing

    Warranty

    2 Years

    Certification

    CE and RoHS

    Features

    1.High-end integrated switching regulator module manufacturing.

    2.Over-voltage,under-voltage,over temperature,short circuit protection.

    3.Auto cool,IP40.

    4.Aluminum alloy shell,heat eliminable.

    Application

    Can be widely used for car,bus,truck,interphone,FM audio system,surveillance system,etc.
