15A MPPT Charge Controller 12V/24V

Products » Solar Charge Controller » MPPT Charge Controller

  • Name :

    15A MPPT Charge Controller 12V/24V

  • Color:

    White

  • Size:

    200 x 110 x 66mm

  • Material:

    Plastic shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    15A

    20A

    30A

    40A

    50A

    SK-MPPT-W Series

    Charge Mode

    MPPT(Maximum Power Point Tracking)

    MPPT Efficiency

    ≥99.5%

    System Type

    DC12V/24V system

    Automatic Recognition

    Input Characteristic

    PV Max PV Input VoltageVOC

    12V/24V system

    DC100V

    DC150V

    Start The Charging Voltage Point

    12V system

    18V

    24V system

    32V

    High Input Voltage Protection Point

    12V/24V system

    DC100V

    DC150V

    High Input Voltage Recovery Point

    12V/24V system

    DC95V

    DC145V

    Rated PV Power

    12V system

    200W

    260W

    390W

    520W

    650W

    24V system

    400W

    520W

    780W

    1040W

    1300W

    Charge Characteristic

    Selectable Battery Types

    12V/24V system

    Sealed lead-acid batteries,Vented batteries,Gel batteries,NiCd batteries(Other types of the batteries also can be defined)

    Charge Method

    12V/24V system

    Three stages charge: constant current(MPPT),

    constant voltage,floating charge

    Charge Rated Current

    12V/24V system

    15A

    20A

    30A

    40A

    50A

    Output Discharge Characteristic

    USB (Total for 2USB output)

    DC5V 3A

    Load Output Voltage

    Based on battery voltage

    Rated Output Current

    15A

    20A

    30A

    40A

    50A

    Output Control Mode

    ON/OFF mode,Dual time control mode,PV&Time control mode,PV voltage control mode

    Output Control Set Way

    Controller button or PC software

    Display/Communication

    LCD Display

    System type,PV voltage,charge voltage,charging current,charging power,temperature,etc.

    PC Software

    RS485

    Other Parameter

    Protection Function

    Yes (PV reverse connection,Battery reverse connection,Over voltage,low voltage,over temperature,over load,short circuit protection,etc.)

    Cooling Mode

    Auto cool

    Measurement Size D x W x H (mm)

    200 x 110 x 66

    243 x 155 x 79

    Packing Size D x W x H (mm)

    249 x 144 x 105

    289 x 189 x 113

    Net Weight (Kg)

    0.9

    1.8

    Gross Weight (Kg)

    2.0

    2.5


    Features

    1.High efficiency MPPT control algorithm,MPPT efficiency ≥99.5%,whole machine conversion efficiency up to 98%.

    2.Charge mode: three stages (fast charge,constant charge,floating charge).It prolongs service life of the batteries.

    3.Discharge mode: ON/OFF mode,Dual time control mode,PV& Time control mode,PV voltage control mode.

    4.Recommended battery types: Flooded,Sealed lead acid,Gel battery.Other types of the batteries can also be defined.

    5.Most information could be provided by LCD like: system type,PV input voltage,PV input current,day,month,total generating power,battery type,battery voltage,charging current,charging power,discharge current,discharge power and so on.

    6.RS485 communication,we can offer communication protocol also,it’s convenient for user’s integration management.


    Application

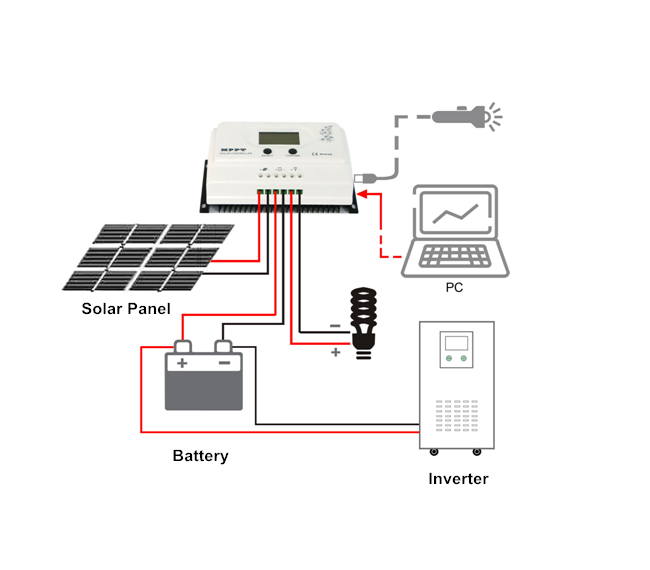

    Can be widely used for off grid solar system,telecommunication base station,household system, street lighting system,field monitoring system,etc.
